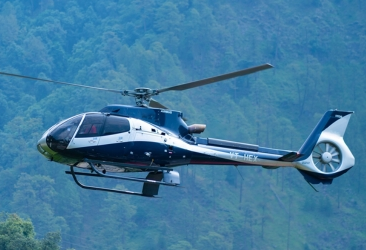

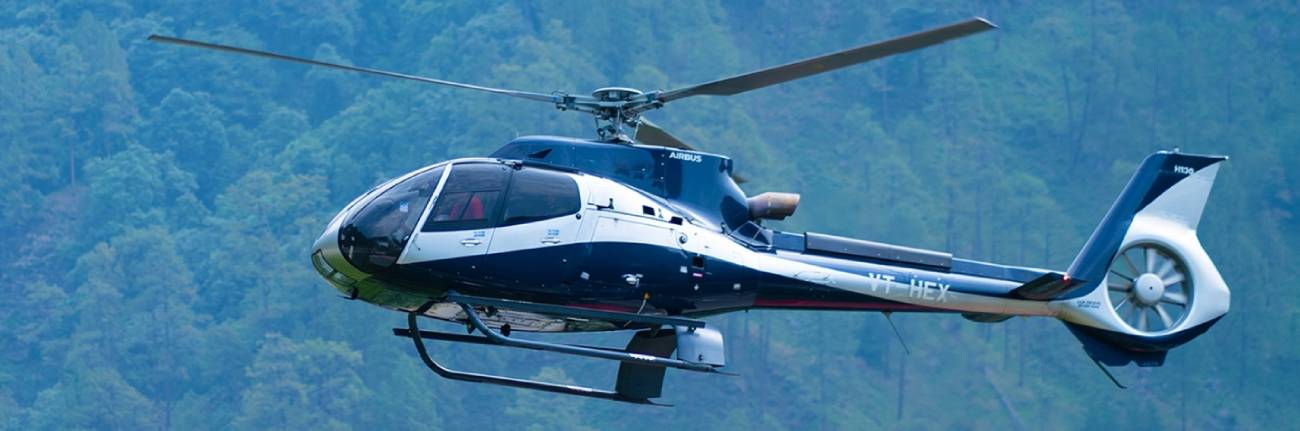

Airbus H130 Technical Specifications

Performance:

• Hover Ceiling (Out of Ground Effect, OGE) at Maximum Takeoff Weight (MTOW), ISA: 2,957 meters (9,700 feet)
• Hover Ceiling (In Ground Effect, IGE) at MTOW, ISA: 3,429 meters (11,250 feet)
• Fast Cruise Speed at MTOW: 237 km/h (128 knots)
• Maximum Range at Fast Cruise Speed: 606 kilometers (327 nautical miles)
• Maximum Endurance at Fast Cruise Speed: 4 hours
• Flight Envelope (Temperature): -40°C to ISA +35°C, limited to 50°C
• Maximum Altitude Flight: 7,010 meters (23,000 feet)

Dimensions:

• D-Value (Overall Length): 12.64 meters (41 feet 6 inches)
• Rotor Diameter: 10.69 meters (35 feet 1 inch)
• Cabin Interior Volume (excluding pilot's area): 3.70 cubic meters (130.7 cubic feet)

Weight and Capacity:

• Maximum Takeoff Weight (MTOW): 2,500 kg (5,512 lbs)
• MTOW with External Load: 3,050 kg (6,724 lbs)
• Useful Load: 1,039 kg (2,290 lbs)
• Standard Fuel Tank Capacity: 425 kg (937 lbs)
• Crew and Passenger Capacity: Configurations include 1 pilot + 7 passengers or 2 pilots + 5 passengers

Engine:

• Engine Type: Safran Helicopter Engines Arriel 2D
• Takeoff Power: 710 kW (952 shp)

Configurations:

• Passenger Transport: Seven-seat layout suitable for tourism and VIP transport, offering excellent visibility and comfort.
• Emergency Medical Services (EMS): Configurations can accommodate up to two pilots, one stretcher, and three to four medical crew members.

Notable Features:

• Fenestron® Shrouded Tail Rotor: Reduces external sound levels and enhances safety for ground personnel.
• Active Vibration Control System: Enhances passenger comfort by minimizing vibrations.
• Advanced Avionics: Equipped with Garmin’s G500H TXi glass cockpit, synthetic vision system (SVS), and helicopter terrain avoidance and warning system (HTAWS).
• Environmental Control: Improved air conditioning and cabin interior design with a fully flat floor.

The H130's design emphasizes low maintenance costs and high availability, making it a preferred choice for operators worldwide. Its quiet operation, spacious cabin, and advanced safety features contribute to its popularity in various sectors.
